| I. Introduction of the unparalleled 3D¡ºMoldFlow¡»Simulation |
|
- |
|
To optimize the design of L/F & Package |
- |
|
By simulating the pattern of resin filling inside package |
- |
|
At initial stage of developing a new package |
|
|
- |
|
Molding quality problems such as Voids,
Incomplete Fill, |
| |

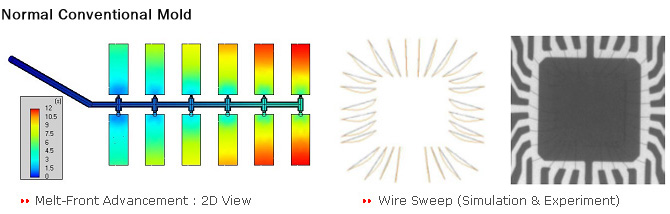

Wire Sweep, etc, can be detected & resolved in pre- |
| |
emptive manner without having to engage in the cycle of |
| |
trial and error. |
|
| |
| II. Simulation Procedure (Lead-time : 2 weeks) |
- |
|
Data Collection : Application of Package & L/F |
- |
|
Analysis on existing mold design |
- |
|
Drawing amendment as per 3D simulation |
- |
|
New parts fabrication for test and evaluation |
- |
|
Actual test(Book Mold test) |
- |
|
Comparison of evaluation data with 3D simulation |
- |
|
Optimization on Variable data |
- |
|
Final Optimization |
|
